DCH-Z510 siren—help needed

#1

Dear community,

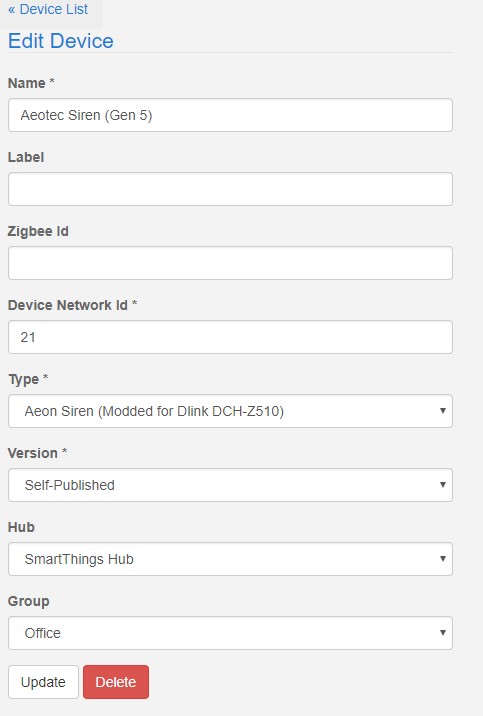

I cannot get my device handler to look normally as a tile.
Could you please let me know why I only see two buttons instead of one big one and then 6/7 of them?

/**
 *  Copyright 2015 SmartThings, Modded by Knackrack615, modded by nickolasemp
 *
 *  Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except
 *  in compliance with the License. You may obtain a copy of the License at:
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 *  Unless required by applicable law or agreed to in writing, software distributed under the License is distributed
 *  on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License
 *  for the specific language governing permissions and limitations under the License.
 *
 *  Aeon Siren
 *
 *  Author: SmartThings
 *  Date: 2014-07-15
 */

preferences {
   // PROB-1673 Since there is a bug with how defaultValue and range are handled together, we won't rely on defaultValue and won't set required, but will use the default values in the code below when needed.
   input "defaultSound", "enum", title: "Default Sound to use for the Siren?", options: ["Emergency","FireAlarm","Ambulance","PoliceCar","DoorChime","BeepCode"], required: false, defaultValue: "DoorChime"
   //input "sound", "number", title: "Siren sound (1-5)", range: "1..5" //, defaultValue: 1, required: true//, displayDuringSetup: true  // don't display during setup until defaultValue is shown
   input "volume", "number", title: "Volume (1-3)", range: "1..3" //, defaultValue: 3, required: true//, displayDuringSetup: true
}

metadata {
 definition (name: "Aeon Siren (Modded for Dlink DCH-Z510)", namespace: "smartthings", author: "SmartThings"/*, ocfDeviceType: "x.com.st.d.siren"*/) {
    capability "Actuator"
    capability "Alarm"
    capability "Switch"
    capability "Health Check"
    capability "Configuration"

    command "FireAlarm"
    command "Ambulance"
    command "PoliceCar"
    command "DoorChime"
    command "BeepCode"
    command "Emergency"

    fingerprint deviceId: "0x1005", inClusters: "0x25, 0x59, 0x5A, 0x5E, 0x70, 0x71, 0x72, 0x73, 0x80, 0x85, 0x86, 0x87", deviceJoinName: "Aeotec Siren (Gen 5)"
    fingerprint deviceId: "0x1005", inClusters: "0x25, 0x59, 0x5A, 0x5E, 0x70, 0x71, 0x72, 0x73, 0x80, 0x85, 0x86, 0x87, 0x98", deviceJoinName: "Aeotec Siren (Gen 5).4"
    //0x20,0x25,0x30,0x59,0x5A,0x5E,0x70,0x72,0x73,0x7A,0x85,0x86,0x98
  }


 simulator {

 }

 /*How to show as a device and its tiles, https://docs.smartthings.com/en/latest/device-type-developers-guide/tiles-metadata.html*/
 tiles(scale: 2) {
    multiAttributeTile(name:"alarm", type: "generic", width: 6, height: 4){
        tileAttribute ("device.alarm", key: "PRIMARY_CONTROL") {
            attributeState "off", label:'off', action:'alarm.siren', icon:"st.alarm.alarm.alarm", backgroundColor:"#ffffff"
            attributeState "both", label:'alarm!', action:'alarm.off', icon:"st.alarm.alarm.alarm", backgroundColor:"#e86d13"
        }
	}

    standardTile("FireAlarm", "device.button", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Fire Alarm', action:"FireAlarm", icon:"st.Outdoor.outdoor10"
    }
    standardTile("Ambulance", "device.button", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Ambulance', action:"Ambulance", icon:"st.Transportation.transportation2"
    }
    standardTile("PoliceCar", "device.button", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Police Car', action:"PoliceCar", icon:"st.Transportation.transportation8"
    }
    standardTile("DoorChime", "device.button", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Door Chime', action:"DoorChime", icon:"st.Home.home30"
    }
    standardTile("BeepCode", "device.button", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Beep Code', action:"BeepCode", icon:"st.Seasonal Winter.seasonal-winter-002"
    }
    standardTile("Emergency", "device.button", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Beep Code', action:"Emergency", icon:"st.alarm.alarm.alarm"
    }
    standardTile("off", "device.alarm", inactiveLabel: true, decoration: "flat", width: 2, height: 2) {
        state "default", label:'Off', action:"alarm.off", icon:"st.thermostat.heating-cooling-off"
    }

    main (["alarm"])
    details(["alarm", "FireAlarm", "Ambulance", "PoliceCar", "DoorChime", "BeepCode", "Emergency", "off"])
 }
}



/*
metadata {
	// Automatically generated. Make future change here.
	definition (name: "SimpliSafe", namespace: "tobycth3", author: "Toby Harris") {
		capability "Alarm"
		capability "Polling"
		capability "Acceleration Sensor"
        capability "Contact Sensor"
		capability "Carbon Monoxide Detector"
        capability "Lock"
		capability "Presence Sensor"
		capability "Smoke Detector"
        capability "Temperature Measurement"
        capability "Water Sensor"
		command "home"
		command "away"
		command "off"
		command "update_state"
		command "update_temp"
		attribute "events", "string"
		attribute "recent_alarm", "string"
		attribute "recent_fire", "string"
		attribute "recent_co", "string"
		attribute "recent_flood", "string"
		attribute "warnings", "string"
	}

	simulator {
		// TODO: define status and reply messages here
	}


tiles(scale: 2) {
    multiAttributeTile(name:"alarm", type: "generic", width: 6, height: 4){
        tileAttribute ("device.alarm", key: "PRIMARY_CONTROL") {
            attributeState "off", label:'${name}', icon: "st.security.alarm.off", backgroundColor: "#505050"
            attributeState "home", label:'${name}', icon: "st.Home.home4", backgroundColor: "#00BEAC"
            attributeState "away", label:'${name}', icon: "st.security.alarm.on", backgroundColor: "#008CC1"
			attributeState "pending off", label:'${name}', icon: "st.security.alarm.off", backgroundColor: "#ffffff"
			attributeState "pending away", label:'${name}', icon: "st.Home.home4", backgroundColor: "#ffffff"
			attributeState "pending home", label:'${name}', icon: "st.security.alarm.on", backgroundColor: "#ffffff"
			attributeState "failed set", label:'error', icon: "st.secondary.refresh", backgroundColor: "#d44556"
        }

		tileAttribute("device.events", key: "SECONDARY_CONTROL", wordWrap: true) {
			attributeState("default", label:'${currentValue}')
		}
    }

    standardTile("off", "device.alarm", width: 2, height: 2, canChangeIcon: false, inactiveLabel: true, canChangeBackground: false) {
        state ("off", label:"off", action:"off", icon: "st.security.alarm.off", backgroundColor: "#008CC1", nextState: "pending")
        state ("away", label:"off", action:"off", icon: "st.security.alarm.off", backgroundColor: "#505050", nextState: "pending")
        state ("home", label:"off", action:"off", icon: "st.security.alarm.off", backgroundColor: "#505050", nextState: "pending")
        state ("pending", label:"pending", icon: "st.security.alarm.off", backgroundColor: "#ffffff")
	}

    standardTile("away", "device.alarm", width: 2, height: 2, canChangeIcon: false, inactiveLabel: true, canChangeBackground: false) {
        state ("off", label:"away", action:"away", icon: "st.security.alarm.on", backgroundColor: "#505050", nextState: "pending")
		state ("away", label:"away", action:"away", icon: "st.security.alarm.on", backgroundColor: "#008CC1", nextState: "pending")
        state ("home", label:"away", action:"away", icon: "st.security.alarm.on", backgroundColor: "#505050", nextState: "pending")
		state ("pending", label:"pending", icon: "st.security.alarm.on", backgroundColor: "#ffffff")
	}

    standardTile("home", "device.alarm", width: 2, height: 2, canChangeIcon: false, inactiveLabel: true, canChangeBackground: false) {
        state ("off", label:"home", action:"home", icon: "st.Home.home4", backgroundColor: "#505050", nextState: "pending")
        state ("away", label:"home", action:"home", icon: "st.Home.home4", backgroundColor: "#505050", nextState: "pending")
		state ("home", label:"home", action:"home", icon: "st.Home.home4", backgroundColor: "#008CC1", nextState: "pending")
		state ("pending", label:"pending", icon: "st.Home.home4", backgroundColor: "#ffffff")
	}

		standardTile("recent_alarm", "device.contact", inactiveLabel: false, width: 2, height: 2) {
			state "closed", label:'Alarm', icon: "st.security.alarm.clear", backgroundColor: "#50C65F"
			state "open", label:'ALARM', icon: "st.security.alarm.alarm", backgroundColor: "#d44556"
		}
		standardTile("freeze", "device.freeze_status", width: 2, height: 2, canChangeIcon: false, inactiveLabel: true, canChangeBackground: false) {
			state ("no alert", label:'Temp', action:"update_temp", icon: "st.alarm.temperature.normal", backgroundColor: "#50C65F", nextState: "updating")
			state ("alert", label:'TEMP', action:"update_temp", icon: "st.alarm.temperature.freeze", backgroundColor: "#d44556", nextState: "updating")
			state ("updating", label:"updating", icon: "st.alarm.temperature.normal", backgroundColor: "#ffffff")
		}
		standardTile("recent_fire", "device.smoke", inactiveLabel: false, width: 2, height: 2) {
			state "clear", label:'Fire', icon: "st.alarm.smoke.clear", backgroundColor: "#50C65F"
			state "detected", label:'FIRE', icon: "st.alarm.smoke.smoke", backgroundColor: "#d44556"
		}
		standardTile("recent_co", "device.carbonMonoxide", inactiveLabel: false, width: 2, height: 2) {
			state "clear", label:'CO2', icon: "st.alarm.carbon-monoxide.clear", backgroundColor: "#50C65F"
			state "detected", label:'CO2', icon: "st.alarm.carbon-monoxide.carbon-monoxide", backgroundColor: "#d44556"
		}
		standardTile("recent_flood", "device.water", inactiveLabel: false, width: 2, height: 2) {
			state "dry", label:'Flood', icon: "st.alarm.water.dry", backgroundColor: "#50C65F"
			state "wet", label:'FLOOD', icon: "st.alarm.water.wet", backgroundColor: "#d44556"
		}
		standardTile("warnings", "device.acceleration", width: 2, height: 2, canChangeIcon: false, inactiveLabel: true, canChangeBackground: false) {
			state ("inactive", label:'Base', action:"update_state", icon: "st.Kids.kids15", backgroundColor: "#50C65F", nextState: "updating")
			state ("active", label:'BASE', action:"update_state", icon: "st.Kids.kids15", backgroundColor: "#d44556", nextState: "updating")
			state ("updating", label:"updating", icon: "st.Kids.kids15", backgroundColor: "#ffffff")
		}
		standardTile("refresh", "device.alarm", inactiveLabel: false, decoration: "flat", width: 2, height: 2) {
			state "default", action:"polling.poll", icon:"st.secondary.refresh"
		}

		main(["alarm"])
		details(["alarm","off", "away", "home", "recent_alarm", "freeze", "recent_fire", "recent_co", "recent_flood", "warnings", "refresh"])
	}
}
*/



def installed() {
// Device-Watch simply pings if no device events received for 30min(checkInterval)
    sendEvent(name: "checkInterval", value: 2 * 15 * 60 , displayed: false, data: [protocol: "zwave", hubHardwareId: device.hub.hardwareID, offlinePingable: "1"])

    // Get default values and set device to send us an update when alarm state changes from device
    response([secure(zwave.basicV1.basicGet()), secure(zwave.configurationV1.configurationSet(parameterNumber: 80, size: 1, configurationValue: [2]))])
}

def updated() {
    def commands = []
// Device-Watch simply pings if no device events received for 30min(checkInterval)
    sendEvent(name: "checkInterval", value: 2 * 15 * 60, displayed: false, data: [protocol: "zwave", hubHardwareId: device.hub.hardwareID, offlinePingable: "1"])

    if(!state.sound) state.sound = 1
    if(!state.volume) state.volume = 3

    log.debug "settings: ${settings.inspect()}, state: ${state.inspect()}"

    Short sound = (settings.sound as Short) ?: 1
    Short volume = (settings.volume as Short) ?: 3

    if (sound != state.sound || volume != state.volume) {
        state.sound = sound
        state.volume = volume
        commands << secure(zwave.configurationV1.configurationSet(parameterNumber: 37, size: 2, configurationValue: [sound, volume]))
        commands << "delay 1000"
        commands << secure(zwave.basicV1.basicSet(value: 0x00))
    }

    // Set device to send us an update when alarm state changes from device
    commands << secure(zwave.configurationV1.configurationSet(parameterNumber: 80, size: 1, configurationValue: [2]))

    response(commands)
}

def parse(String description) {
    log.debug "parse($description)"
    def result = null
    if (description.startsWith("Err")) {
        if (state.sec) {
            result = createEvent(descriptionText:description, displayed:false)
        } else {
            result = createEvent(
                    descriptionText: "This device failed to complete the network security key exchange. If you are unable to control it via SmartThings, you must remove it from your network and add it again.",
                    eventType: "ALERT",
                    name: "secureInclusion",
                    value: "failed",
                    displayed: true,
            )
        }
    } else {
        def cmd = zwave.parse(description, [0x20: 1, 0x25: 1, 0x26: 1, 0x70: 1, 0x80: 1, 0x98: 1])
        if (cmd) {
            result = zwaveEvent(cmd)
            log.debug "Parse returned ${result?.inspect()}"
        } else {
			log.debug("Couldn't zwave.parse '$description'")
			null
        }
    }
    log.debug "Parse returned ${result?.inspect()}"
    return result
}

def zwaveEvent(physicalgraph.zwave.commands.securityv1.SecurityCommandsSupportedReport cmd) {
	response(configure())
}

def configure() {
	log.debug "Resetting Siren Parameters to SmartThings Compatible Defaults"
	def cmds = []

	cmds << zwave.configurationV1.configurationSet(configurationValue: [0], parameterNumber: 4, size: 1)
    cmds << zwave.configurationV1.configurationSet(configurationValue: [0], parameterNumber: 29, size: 1)
    cmds << zwave.configurationV1.configurationSet(configurationValue: [6], parameterNumber: 31, size: 1)

    delayBetween(cmds, 500)
}

def zwaveEvent(physicalgraph.zwave.commands.configurationv1.ConfigurationReport cmd) {
    log.debug "---CONFIGURATION REPORT V2--- ${device.displayName} parameter ${cmd.parameterNumber} with a byte size of ${cmd.size} is set to ${cmd.configurationValue}"
}

def zwaveEvent(physicalgraph.zwave.commands.switchbinaryv1.SwitchBinaryReport cmd)
{
	[name: "switch", value: cmd.value ? "on" : "off", type: "digital", displayed: true, isStateChange: true]
}

def zwaveEvent(physicalgraph.zwave.commands.sensorbinaryv2.SensorBinaryReport cmd) {
	createEvent(name:"Alarm", cmd.sensorValue ? "on" : "off")
}

def zwaveEvent(physicalgraph.zwave.commands.basicv1.BasicReport cmd) {
    log.debug "rx $cmd"
    [
        createEvent([name: "switch", value: cmd.value ? "on" : "off", displayed: false]),
        createEvent([name: "alarm", value: cmd.value ? "both" : "off"])
    ]
}

//def zwaveEvent(physicalgraph.zwave.Command cmd) {
//    createEvent(displayed: false, descriptionText: "$device.displayName: $cmd")
//}

def zwaveEvent(physicalgraph.zwave.Command cmd) {
	log.debug "Unhandled: $cmd"
    createEvent(descriptionText: cmd.toString(), isStateChange: false)
}

def zwaveEvent(physicalgraph.zwave.commands.notificationv3.NotificationReport cmd) {
if (cmd.notificationType == 6 && cmd.event == 22) {
		log.debug "Playing Door Chime"
	} else if (cmd.notificationType == 10 && cmd.event == 1) {
		log.debug "Playing Police Car"
	} else if (cmd.notificationType == 10 && cmd.event == 3) {
    	log.debug "Playing Ambulance"
    } else if (cmd.notificationType == 10 && cmd.event == 2) {
    	log.debug "Playing Fire Alarm"
    } else if (cmd.notificationType == 7 && cmd.event == 1) {
    	log.debug "Playing Emergency"
    }
}

def on() {
    log.debug "sending on"
    [
        secure(zwave.basicV1.basicSet(value: 0xFF)),
        secure(zwave.basicV1.basicGet())
    ]
}

def off() {
    log.debug "sending off"
    [
        secure(zwave.basicV1.basicSet(value: 0x00)),
        secure(zwave.basicV1.basicGet())
    ]
}

def strobe() {
    on()
}

def siren() {
    on()
}

def both() {
    on()
}

def Emergency() {
	log.debug "Sounding Siren With Emergency"
	[
		secure(zwave.notificationV3.notificationReport(event: 0x01, notificationType: 0x07)),
		secure(zwave.basicV1.basicGet())
	]
}

def FireAlarm() {
	log.debug "Sounding Siren With Fire Alarm"
	[
		secure(zwave.notificationV3.notificationReport(event: 0x02, notificationType: 0x0A)),
        secure(zwave.basicV1.basicGet())
	]
}

def Ambulance() {
	log.debug "Sounding Siren With Ambulance"
	[
		secure(zwave.notificationV3.notificationReport(event: 0x03, notificationType: 0x0A)),
        secure(zwave.basicV1.basicGet())
	]
}

def PoliceCar() {
	log.debug "Sounding Siren With Police Car"
	[
		secure(zwave.notificationV3.notificationReport(event: 0x01, notificationType: 0x0A)),
        secure(zwave.basicV1.basicGet())
	]
}

def DoorChime() {
	log.debug "Sounding Siren With Door Chime"
	[
		secure(zwave.notificationV3.notificationReport(event: 0x16, notificationType: 0x06)),
        secure(zwave.basicV1.basicGet())
	]
}

def BeepCode() {
    log.debug "Sounding Siren With Beep Code"
    [
        secure(zwave.notificationV3.notificationReport(event: 0x16, notificationType: 0x06)),
        "delay 600",
        secure(zwave.basicV1.basicSet(value: 0x00)),
        secure(zwave.notificationV3.notificationReport(event: 0x16, notificationType: 0x06)),
        "delay 600",
        secure(zwave.basicV1.basicSet(value: 0x00)),
        secure(zwave.notificationV3.notificationReport(event: 0x16, notificationType: 0x06)),
        "delay 600",
        secure(zwave.basicV1.basicSet(value: 0x00)),
        secure(zwave.basicV1.basicGet())
    ]
}

//https://graph.api.smartthings.com/ide/doc/zwave-utils.html#securityV1
private secure(physicalgraph.zwave.Command cmd) {
	if (state.sec) {
         log.debug "Sending Secure Command $cmd"
		zwave.securityV1.securityMessageEncapsulation().encapsulate(cmd).format()
	} else {
    	log.debug "Sending Insecure Command $cmd"
		cmd.format()
	}
}

private command(physicalgraph.zwave.Command cmd) {
	if ((zwaveInfo.zw == null && state.sec != 0) || zwaveInfo?.zw?.contains("s")) {
		 log.debug "Sending Secure Command $cmd"
         zwave.securityV1.securityMessageEncapsulation().encapsulate(cmd).format()
	} else {
		 log.debug "Sending Secure Command $cmd"
         cmd.format()
	}
}

/*def zwaveEvent(physicalgraph.zwave.commands.securityv1.SecurityMessageEncapsulation cmd) {
	def encapsulatedCommand = cmd.encapsulatedCommand()
	if (encapsulatedCommand) {
		zwaveEvent(encapsulatedCommand)
	} else {
		log.warn "Unable to extract encapsulated cmd from $cmd"
		createEvent(descriptionText: cmd.toString())
	}
}*/

def zwaveEvent(physicalgraph.zwave.commands.securityv1.SecurityMessageEncapsulation cmd) {
	def encapsulatedCommand = cmd.encapsulatedCommand([0x20: 1, 0x25: 3, 0x26: 3, 0x70: 1, 0x80: 1, 0x98: 1])
	state.sec = 1
	log.debug "encapsulated: ${encapsulatedCommand}"
	if (encapsulatedCommand) {
		zwaveEvent(encapsulatedCommand)
	} else {
		log.warn "Unable to extract encapsulated cmd from $cmd"
		createEvent(descriptionText: cmd.toString())
	}
}

/**
 * PING is used by Device-Watch in attempt to reach the Device
 * */
def ping() {
    secure(zwave.basicV1.basicGet())
}
#2

Which app are you using? And which buttons are showing up?

#3

I am using the new smartthings app (How do I check this? I just let it update).
Only two buttons are showing up. I must be doing something wrong in the tiles section.

#4

I am using the new smartthings app, I think.
Only two buttons are showing u (see photo below)

#5

I’d suggest you use the SmartThings Classic app instead. Your tiles should all show up there, assuming there are no errors in your code.

The new app currently doesn’t work as well as the old app with custom groovy code, particularly when you’re trying to give a device a UI that doesn’t match one of the predefined templates. The thread below discusses how to get DHs to work with the new app, but even if you follow the suggestions I don’t think you’ll be able to get all of your buttons to show up.

#6

I guess there are a few errors… They do not show up properly even in the classic app.

Can you read the code?

#7

In the IDE, did you change the Type of your device to use your edited DH? I just pasted your code into a new DH and this is what I get in the classic app:

#8

What do you mean by changing the type of my device? I do not know where to look. Is it: My Devices-> (pick the device)… and then?

#9

Yes. On that screen it should show “Aeon Siren (Modded for Dlink DCH-Z510)” in the Type field. If not, hit Edit, then choose that from the Type drop-down. It’ll be all the way at the bottom.

1 Like
#10

Yeah, I found it! Thanks. However I get this


#11

How on Earth did you get it without pairing first? :smiley:

#12

I just created a virtual device through the IDE using your DH. It doesn’t do anything, but useful for basic testing.

Did you get the 500 error sorted? When I’ve hit those they’ve just been temporary - close browser and try again has worked. Others on the forum have recommended using an incognito browser tab.

1 Like
#13

You are right! It now works as intended (almost)! Thank you very much!

However, after 8 hours, it now shows as unavailable… :confused: This siren is driving me crazy.

Edit: I uninstalled the new Smartthings app completely. I renamed the siren and then reconnected it. I will see if that was the problem.

#14

After one day, everything is working as it should. For some reason the notification was showing up , about a door that was open, only on my tablet… I gotta say, it is not an easy solution what they have created there :confused: as long as it is set up correctly, I am fine.

1 Like
(Pardal) #15

Yep, i have this error to.
I just pair the siren very easly but when i change the DH gave me that error.

My device number is always: 0B and it actually works but i cannot select the type of siren or volume…

EDIT:
I just copy the address, erase the device and create a new one with your DH and paste the address. Works perfect!

#16

No problem :slight_smile:
